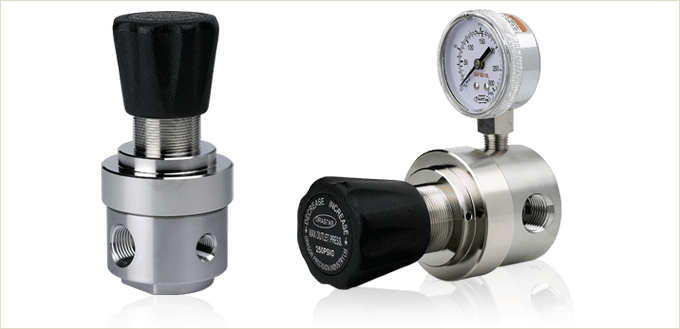

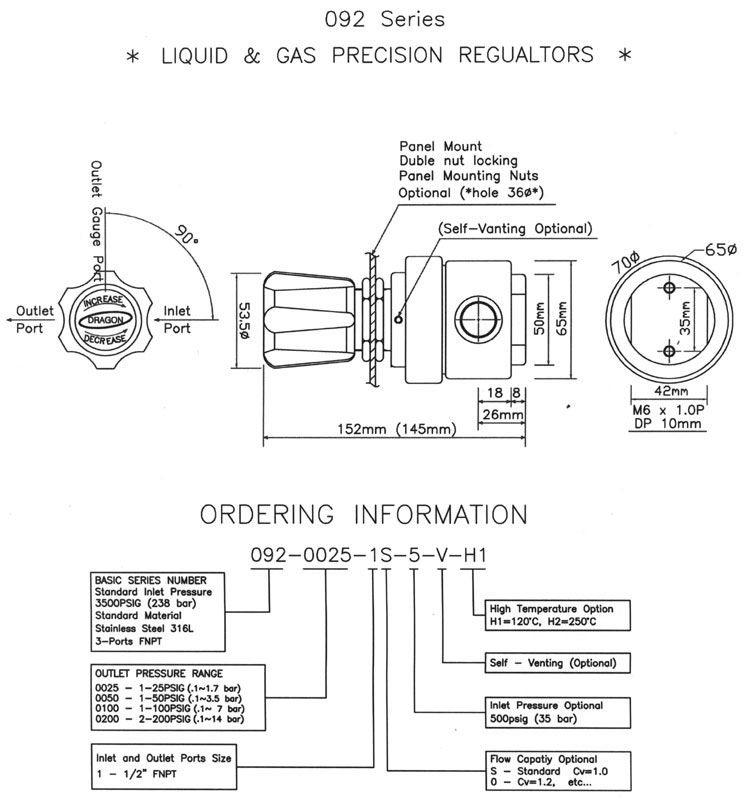

092-0200-1S, 092-0200-1S-V, 092-0200-1S-5, 092-0200-1S-5-V, 092-0200-1S-H1, 092-0200-1S-H2
Ports
- FNPT 1/2"
Leak Rate Certification
- to 2x10-8 atm cc/sec Helium available.
Body Materials
- Stainless steel 316L
Bonnet Material
- Nickel Plated Forged Brass(Stainless steel 316L Optional)
Diaphragm
- Stainless steel 316L
Valve
- Stainless steel 316L
Valve Spring
- Stainless steel 316L
Valve Seat
- Teflon (Kel-F, Polyimide, etc.. Optional)
Inlet Pressure Ranges
- Model 092-0200-1S, 3,500psig (238bar)
Inlet Pressure Ranges
- Model 092-0200-1S-5, 500psig (35bar)
Outlet Pressure Ranges
- 1-25psig (.1-1.7bar)
Self-Vanting
- Model 092-0200-1S-V Optional
Operating Temperature
-40°C - +70°C (-40°F - +165°F)
+200°C - +540°C (+328°F - +1000°F) Optional
Operating Temperature
Model 092-0200-1S-H1, +120°C (Optional)
Model 092-0200-1S-H2, +250°C (Optional)
Model 092-0200-1S--5-H1, +120°C (Optional)
Model 092-0200-1S--5-H2, +250°C (Optional)
Flow Capacity
- Cv=1.0(Optional Cv=1.2 etc)
Standard Optional
- Outlet Gauge, etc..
|
 |
 |
|
|
